PACKAGING

Mobirise

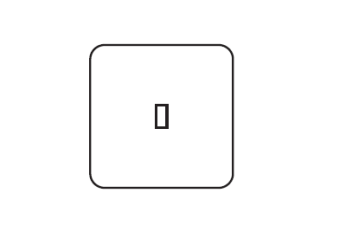

0402/U0402

Width: 0.019” (0.48)
Length: 0.039” (1.00)
Height: 0.016” (0.41)
LD Pitch: N/A
Pad Count: 2

Mobirise

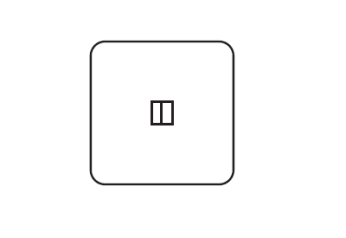

0404

Width: 0.039” (1.00)
Length: 0.039” (1.00)
Height: 0.016” (0.41)
LD Pitch: N/A
Pad Count: 4

Mobirise

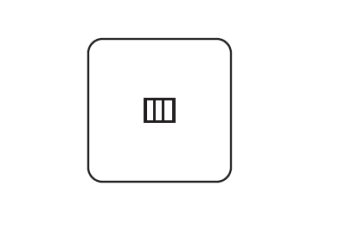

0406

Width: 0.039” (1.00)
Length:0.059” (1.50)
Height: 0.016” (0.41)
LD Pitch: N/A
Pad Count: 6

Mobirise

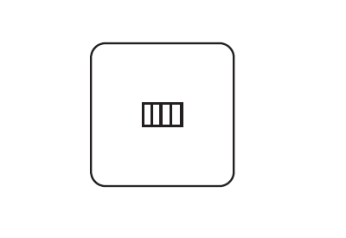

0408/U0408

Width: 0.039” (1.00)
Length:0.079” (2.00)
Height: 0.016” (0.41)
LD Pitch: N/A
Pad Count: 8

Mobirise

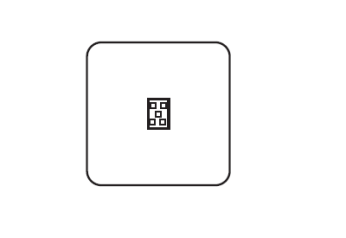

5 Bump FC

Width: 0.038” (0.97)
Length:0.052” (1.32)
Height: 0.016” (0.41)
LD Pitch: N/A
Pad Count: 5

Mobirise

C0201

Width: 0.012” (0.30)
Length: 0.024” (0.60)
Height: 0.013” (0.33)
LD Pitch: N/A
Pad Count: 2

Mobirise

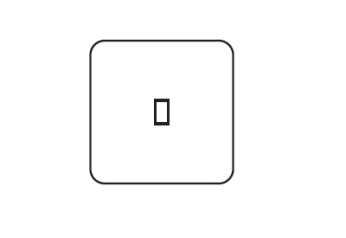

C0402

Width: 0.022” (0.55)
Length: 0.041” (1.05)
Height: 0.014” (0.36)
LD Pitch: N/A
Pad Count: 2

Mobirise

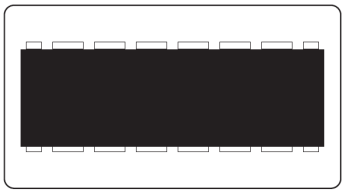

CDIP-16

Width: 0.47” (11.94)
Length:0.90” (22.86)
Height: 0.192” (4.83)
LD Pitch: 0.100” (2.54)
Pin Count: 16

Mobirise

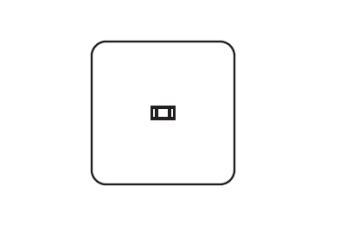

CG0402

Width: 0.039” (1.00)
Length: 0.039” (0.52)
Height: 0.014” (0.35)
LD Pitch: N/A
Pad Count: 2

Mobirise

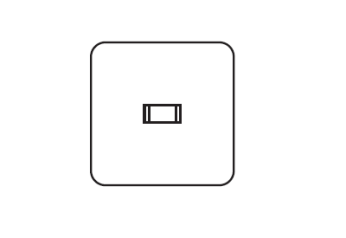

CG0603

Width: 0.063” (1.60)
Length: 0.031” (0.80)
Height: 0.014” (0.35)
LD Pitch: N/A
Pad Count: 2

Mobirise

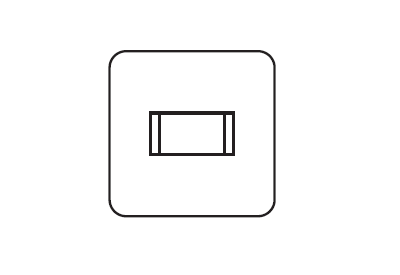

CG1206

Width: 0.126” (3.20)
Length: 0.063” (1.60)
Height: 0.022” (0.55)
LD Pitch: N/A
Pad Count: 2

Mobirise

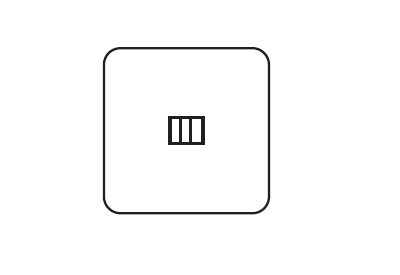

Chip Scale 0406

Width: 0.040” (1.02)
Length:0.060” (1.52)
Height: 0.009” (0.23)
LD Pitch: N/A
Pad Count: 6

Mobirise

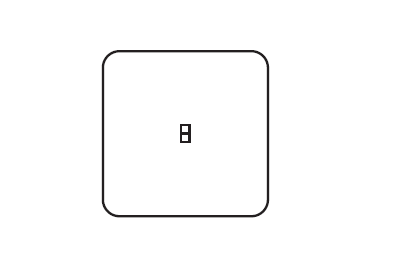

DFN-2-0201

Width: 0.012” (0.30)
Length: 0.025” (0.64)
Height: 0.012” (0.30)
LD Pitch: N/A
Pad Count: 2

Mobirise

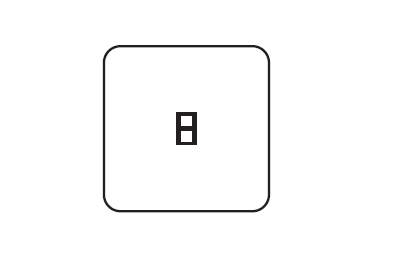

DFN-2-0402

Width: 0.024” (0.61)
Length: 0.040” (1.02)
Height: 0.018” (0.46)
LD Pitch: N/A
Pad Count: 2

Mobirise

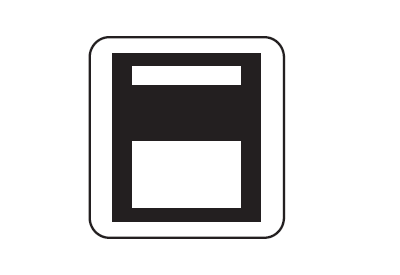

DFN-2-3KW

Width: 0.22” (5.59)
Length: 0.25” (6.35)
Height: 0.05” (1.27)
LD Pitch: 0.168”(4.27)
Pad Count: 2

Mobirise

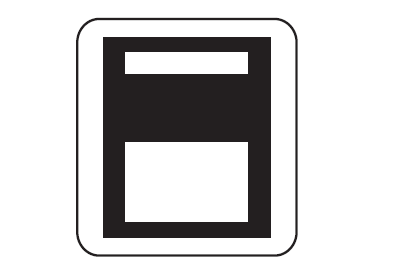

DFN-2-5KW

Width: 0.25” (6.35)
Length: 0.30” (7.62)
Height: 0.05” (1.27)
LD Pitch: 0.189”(4.80)
Pad Count: 2

Mobirise

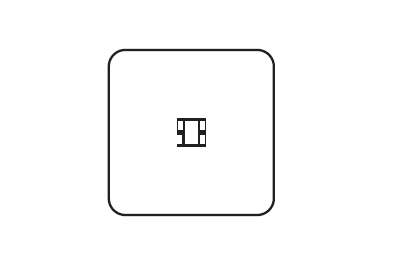

DFN-4

Width: 0.040” (1.02)
Length: 0.040” (1.02)
Height: 0.020” (0.50)
LD Pitch: N/A
Pad Count: 4

Mobirise

DFN-6

Width: 0.059” (1.50)
Length: 0.077” (1.96)
Height: 0.019” (0.48)
LD Pitch: 0.020” (0.50)
Pad Count: 6

Mobirise

DFN-8

Width: 0.079” (2.00)
Length: 0.079” (2.00)
Height: 0.031” (0.80)
LD Pitch: 0.020” (0.50)
Pad Count: 8

Mobirise

DFN-8LP

Width: 0.063” (1.60)
Length:0.079” (2.00)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pad Count: 8

Mobirise

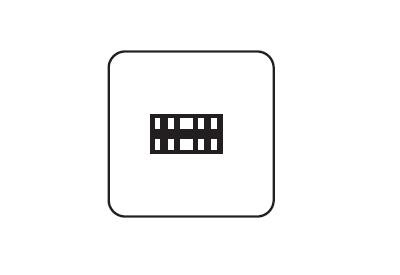

DFN-10

Width: 0.101” (2.57)
Length: 0.101” (2.57)
Height: 0.019” (0.48)
LD Pitch: 0.020” (0.50)
Pad Count: 10

Mobirise

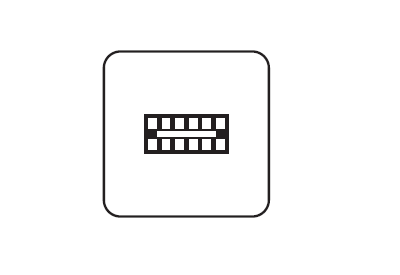

DFN-12

Width: 0.063” (1.60)
Length:0.118” (3.00)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pad Count: 12

Mobirise

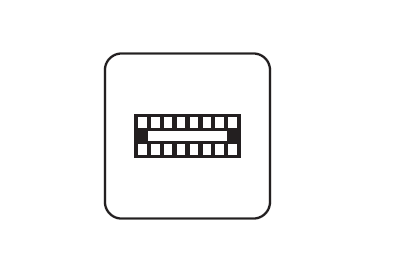

DFN-16LP

Width: 0.063” (1.60)
Length:0.158” (4.00)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pad Count: 16

Mobirise

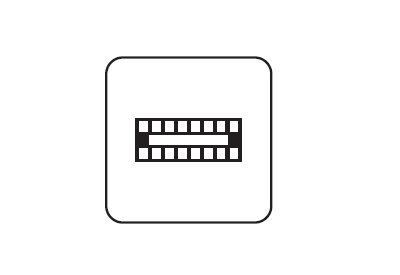

DFN-16

Width: 0.063” (1.60)
Length:0.158” (4.00)
Height: 0.031” (0.79)
LD Pitch: 0.020” (0.50)
Pad Count: 16

Mobirise

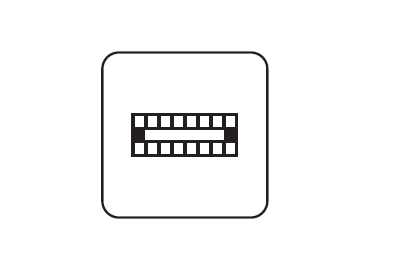

DFN-16SLP

Width:0.051” (1.30)
Length: 0.158” (3.30)
Height: 0.021” (0.53)
LD Pitch: 0.020” (0.50)
Pad Count: 16

Mobirise

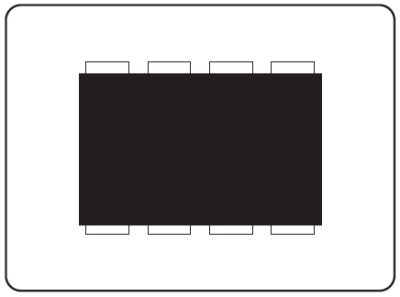

DIP-8

Width: 0.250” (6.35)
Length:0.39” (9.91)
Height: 0.160” (4.06)
LD Pitch: 0.100” (2.54)
Pin Count: 8

Mobirise

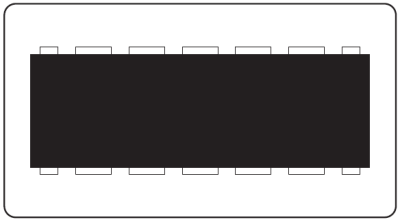

DIP-14

Width: 0.250” (6.35)
Length:0.740” (18.80)
Height: 0.160” (4.06)
LD Pitch: 0.100” (2.54)
Pin Count: 14

Mobirise

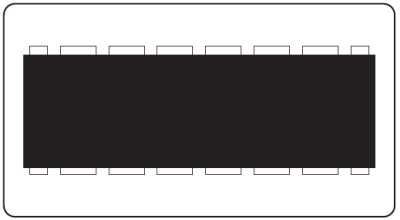

DIP-16

Width: 0.250” (6.35)
Length:0.755” (19.18)
Height: 0.160” (4.06)
LD Pitch: 0.100” (2.54)
Pin Count: 16

Mobirise

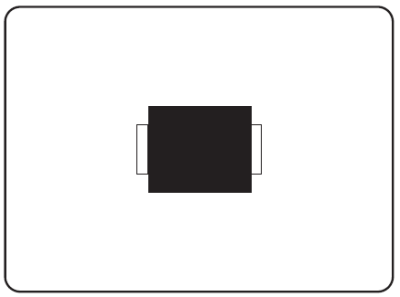

DO-214AA

Width: 0.17” (4.32)
Length:0.14” (3.56)
Height: 0.089” (2.25)
LD Pitch: N/A
Pin Count: 2

Mobirise

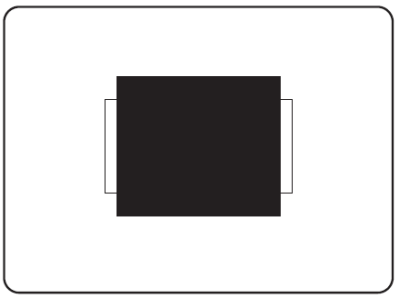

DO-214AB

Width: 0.27” (6.86)
Length:0.23” (5.84)
Height: 0.089” (2.25)
LD Pitch: N/A
Pin Count: 2

Mobirise

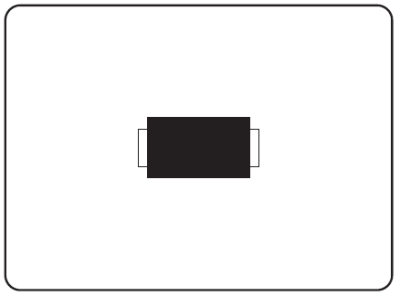

DO-214AC

Width: 0.17” (4.32)
Length:0.10” (2.54)
Height: 0.08” (2.03)
LD Pitch: N/A
Pin Count: 2

Mobirise

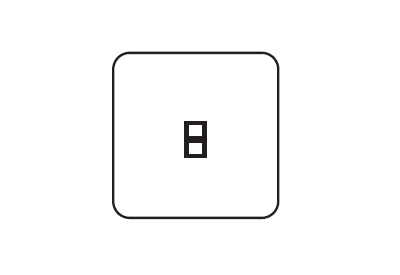

E0503

Width: 0.030” (0.76)
Length: 0.050” (1.27)
Height: 0.030” (0.76)
LD Pitch: N/A
Pad Count: 2

Mobirise

MSOP-8

Width: 0.118” (3.00)
Length: 0.118” (3.00)
Height: 0.044” (1.12)
LD Pitch: 0.050” (1.270)
Pin Count: 8

Mobirise

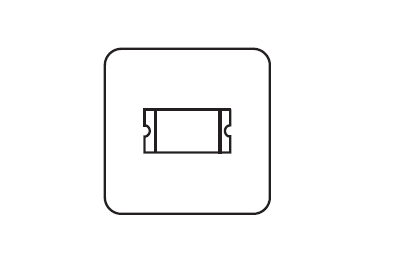

P1206

Width:0.13” (3.20)
Length: 0.065” (1.65)
Height: 0.04” (1.0)
LD Pitch: N/A
Pad Count: 2

Mobirise

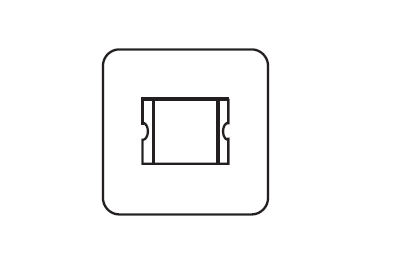

P1210

Width:0.13” (3.20)
Length: 0.10” (2.54)
Height: 0.02” (0.51)
LD Pitch: N/A
Pad Count: 2

Mobirise

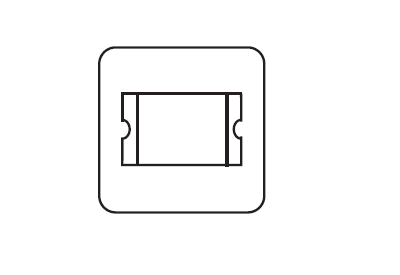

P1812

Width:0.18” (4.57)
Length: 0.11” (2.79)
Height: 0.035” (0.89)
LD Pitch: N/A
Pad Count: 2

Mobirise

Quad/Penta

Width: 0.039” (1.00)
Length:0.059” (1.50)
Height: 0.016” (0.40)
LD Pitch: 0.020” (0.50)
Pad Count: 6

Mobirise

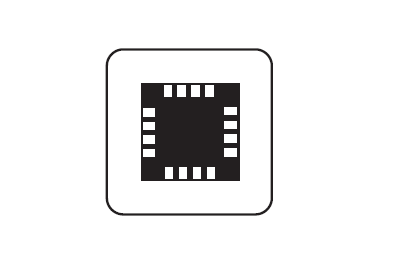

QFN-16

Width: 0.118” (3.00)
Length: 0.118” (3.00)
Height: 0.030” (0.76)
LD Pitch: 0.020” (0.50)
Pad Count: 16

Mobirise

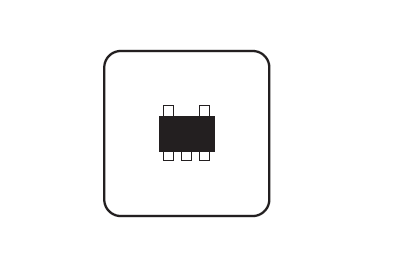

SC-70-5L

Width: 0.050” (1.27)
Length:0.079” (2.00)
Height: 0.035” (0.89)
LD Pitch: 0.025” (0.64)
Pin Count: 5

Mobirise

SC-70-6L

Width: 0.050” (1.27)
Length:0.079” (2.00)
Height: 0.035” (0.89)
LD Pitch: 0.025” (0.64)
Pin Count: 6

Mobirise

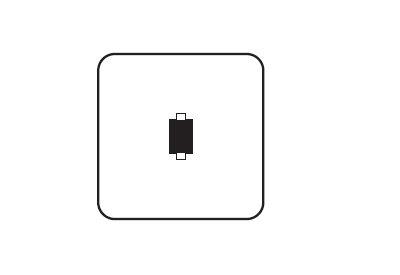

SC-79

Width: 0.032” (0.81)
Length: 0.046” (1.17)
Height: 0.024” (0.61)
LD Pitch: N/A
Pin Count: 2

Mobirise

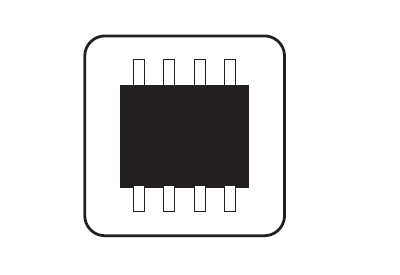

SO-8

Width: 0.192” (4.90)
Length: 0.15” (3.81)
Height: 0.061” (1.55)
LD Pitch: 0.050” (1.270
Pin Count: 8

Mobirise

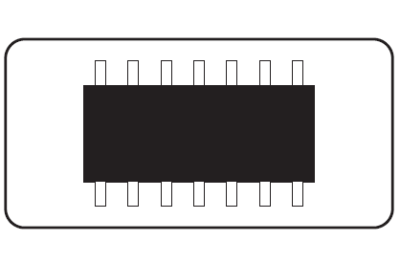

SO-14

Width: 0.15” (3.81)
Length:0.34” (8.63)
Height: 0.061” (1.55)
LD Pitch: 0.050” (1.27)
Pin Count: 14

Mobirise

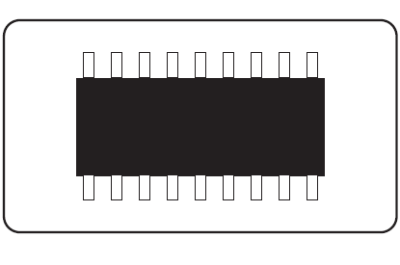

SO-16

Width: 0.15” (3.81)
Length: 0.390” (9.90)
Height: 0.061” (1.55)
LD Pitch: 0.050” (1.27)
Pin Count: 16

Mobirise

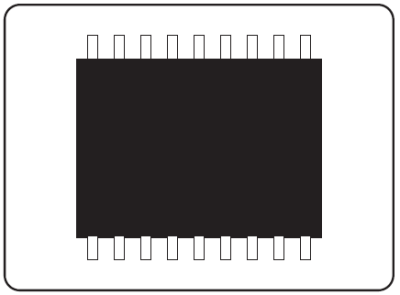

SO-16WB

Width: 0.295” (7.50)
Length: 0.405” (10.30)
Height: 0.097” (2.46)
LD Pitch: 0.050” (1.27)
Pin Count: 16

Mobirise

SOD-323

Width: 0.051” (1.30)
Length: 0.69” (1.75)
Height: 0.037” (0.94)
LD Pitch: N/A
Pin Count: 2

Mobirise

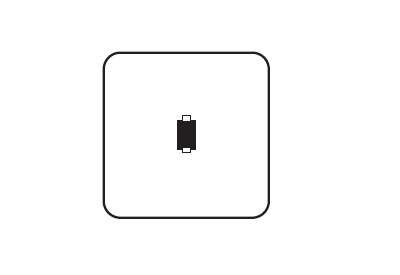

SOD-723

Width: 0.024” (0.61)
Length: 0.040” (1.02)
Height: 0.022” (0.56)
LD Pitch: N/A
Pin Count: 2

Mobirise

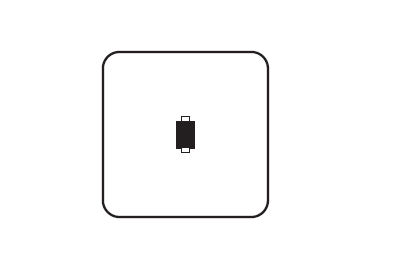

SOD-923

Width: 0.024” (0.60)
Length: 0.031” (0.79)
Height: 0.015” (0.37)
LD Pitch: N/A
Pin Count: 2

Mobirise

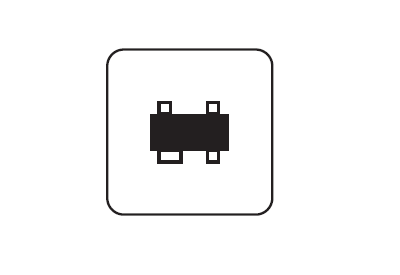

SOT-143

Width: 0.051” (1.30)
Length:0.115” (2.92)
Height: 0.039” (1.00)
LD Pitch: 0.075” (1.90)
Pin Count: 4

Mobirise

SOT-23

Width: 0.051” (1.30)
Length:0.115” (2.92)
Height: 0.039” (1.00)
LD Pitch: 0.037” (0.95)
Pad Count: 3

Mobirise

SOT-23-6

Width: 0.065” (1.65)
Length:0.115” (2.92)
Height: 0.047” (1.19)
LD Pitch: 0.037” (0.95)
Pin Count: 6

Mobirise

SOT-543

Width: 0.047” (1.19)
Length:0.063” (1.60)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pin Count: 4

Mobirise

SOT-553

Width: 0.047” (1.19)
Length:0.063” (1.60)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pin Count: 5

Mobirise

SOT-563

Width: 0.047” (1.19)
Length:0.063” (1.60)
Height: 0.022” (0.55)
LD Pitch: 0.020” (0.50)
Pin Count: 6

Mobirise

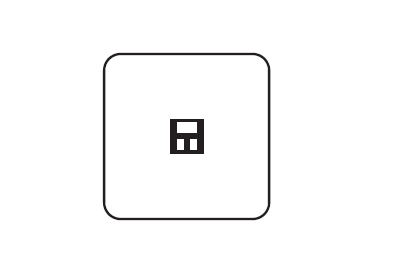

SOT-883

Width: 0.024” (0.50)
Length: 0.039” (1.00)
Height: 0.018” (0.45)
LD Pitch: 0.014”(0.36)
Pad Count: 3

Mobirise

SOT-953

Width: 0.031” (0.79)
Length:0.039” (1.00)
Height: 0.018” (0.46)
LD Pitch: 0.015” (0.38)
Pin Count: 5

Mobirise

SOT-963

Width: 0.031” (0.79)
Length:0.039” (1.00)
Height: 0.018” (0.46)
LD Pitch: 0.015” (0.38)
Pin Count: 6

Mobirise

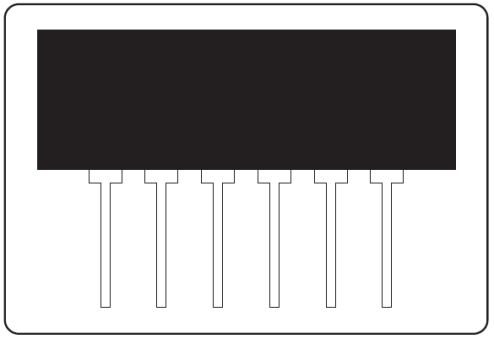

VSIP-6

Width: 0.250” (6.35)
Length:0.780” (19.18)
Height: 0.130” (3.30)
LD Pitch: 0.100” (2.54)
Pin Count: 6

Mobirise

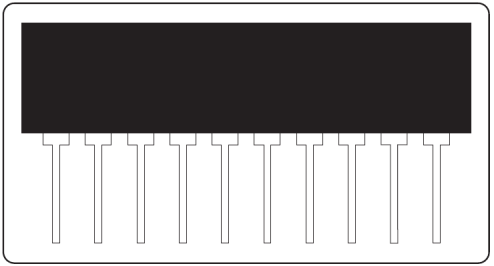

VSIP-10

Width: 0.250” (6.35)
Length:1.020” (25.90)
Height: 0.110” (2.79)
LD Pitch: 0.100” (2.54)
Pin Count: 10
